MANUAL clamp for drums with HORIZONTAL lifting to be installed on the rope/chain of a hoist
For standard oil drums made of metal
Product code: BS101_H
Product description

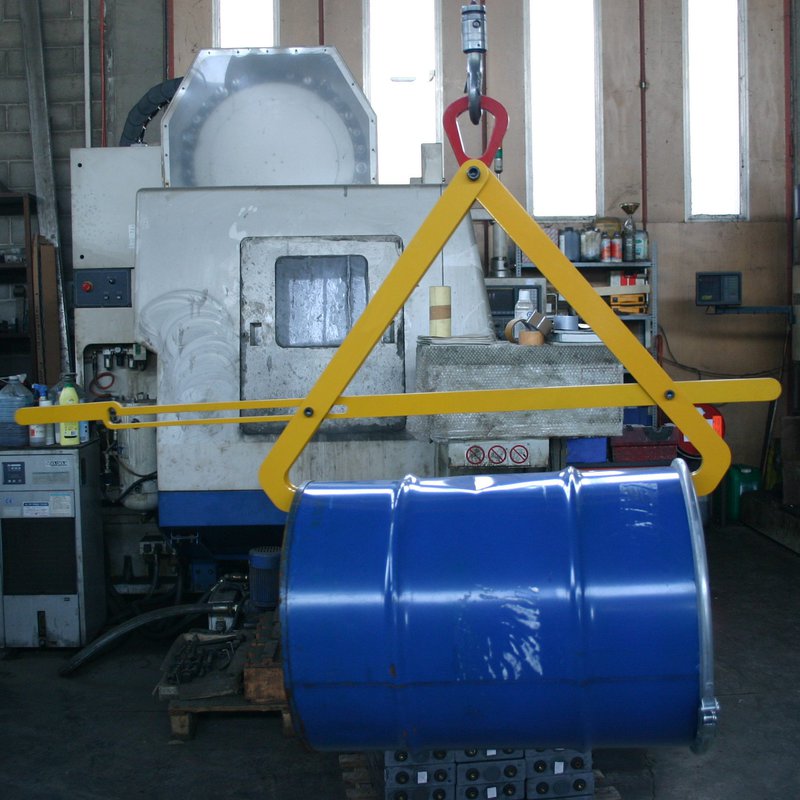

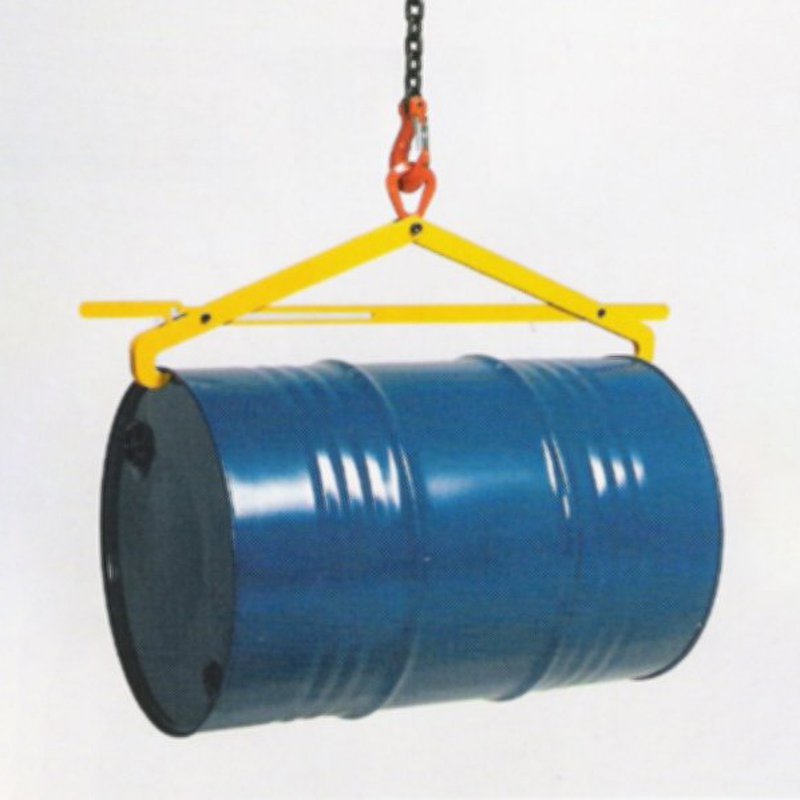

Manual clamp for horizontal handling of standard metal oil drums, to be installed on the chain of a hoist.
If metal (full or empty) drums must be handled occasionally with a bridge crane, a bogie craneor a hoist, BS101 H is the right equipment as for price-performance ratio.
The positioning of clamp gripping ends on the drum is manually performed by the operator, so the latter should stay close to the drum for its handling.
- Available in both stainless steel and painted steel.
- Tailored solutions - Custom design for your needs.
- Reliable experience - Over 30 years of successes.
- ATEX certification - Possibility to ATEX conversion.
- Customer support - Immediate answers and solutions.
Technical specifications
| Model | BS101 H |
| Application | for Hoist |
| Drum clamping | At the top edge |
| Weight | 3,5 kg |
| Capacity | 500 kg |
| Length | 1100 mm |
| Warranty (years) | 1 |
